80W PETREL II LED STREET LIGHT 5050

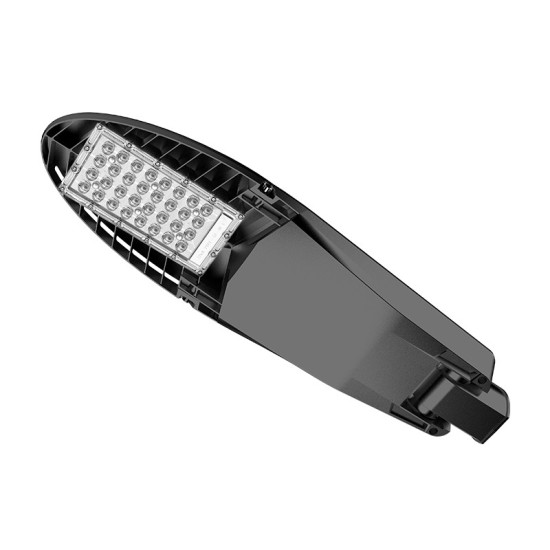

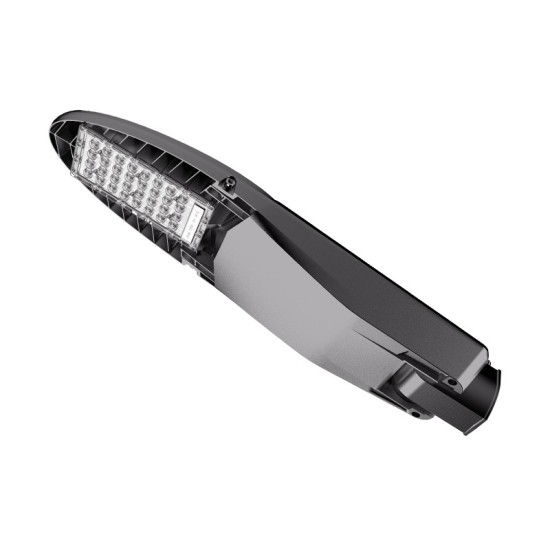

Appearance:
Application:
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,sidewalk, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
Features:
- The shell adopts die-casting integral molding, which has higher safety and longer life.
- The product has a beautiful appearance and curved lines, which effectively reduces wind resistance.
- The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation.
- Using Philips 3030 lamp beads, the luminous efficiency is as high as 150lm/w.
- The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability.
- The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation.
- Waterproof and dustproof grade: IP66, protection grade IK10.
- The product is equipped with other more optional functions: light controller, circuit breaker,single lamp controller, anti-falling sling, etc.
| General Information | |
| Product Model | LY-ST81080XX / LY-ST81090XX / LY-ST81100XX / LY-ST81120XX |
| Product Information | |
| LED Quantity (pcs) | 32 |
| Power | 80W / 90W / 100W / 120W |
| Luminous Flux(lm) | 12800 / 13950 / 15000 / 16800 |
| Luminous Efficiency(lm/w) | >160 / >155 / >150 / >140 |
| Chip Brand | LUXEON 5050 |
| CRI (Color Rendering Index) | 70/80 |
| Beam Angle | TYPE III 150*80 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
| IP Rating | IP66 / IK10 |
| Material | ADC 12 |
| Installation Height | 6m-10m |
| Input Voltage | AC100V~277V 50/60HZ / DC12-24V |
| Net Weight(kg) | 4.4 |
| Size(mm) | L703*W200*H109mm (L27.68*W7.88*H4.29Inch) |
| LED Driver | Sosen SS-75VH |
| Light Body Color | Black/Grey |
| Storage Environment | Temperature -20 to +60°C, Relative Humidity 5~95% |
| Working Environment | Temperature -20 to +45°C, Relative Humidity 20~90% |
| Dimmable | 1-10V/DALI |
| Package Details | |
| Package Size(mm) | L743*W242*H154mm (L29.25*W9.53*H6.06inch) |
| Package Quantity(Pcs) | 1 |
| Gross Weight(kg) | 5.2 |
| Other Information | |
| Test Report | Provided |
| CoC(Certificate of Conformity) | Provided |
| Inspection Report | Yes |
| Certificates | CE, RoHS, FCC, ISO 9001 |
| Warranty | 3 Years |
